Control System Balboa BP200G1 2KW 825INC 243(59405-01)
Control System Balboa BP200G1 2KW 825INC 243(59405-01)

Balboa BP200G1 Control Pack - 2KW (59405-01)

£579.00
£579.00
(-0%)

Inc VAT

Hurry up! only 0 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Control System Balboa BP200G1 2KW 825INC 243(59405-01)

Balboa BP200G1 Control Pack - 2KW (59405-01)

£579.00

Balboa BP200G1 Control Pack - 2KW (59405-01)

£579.00

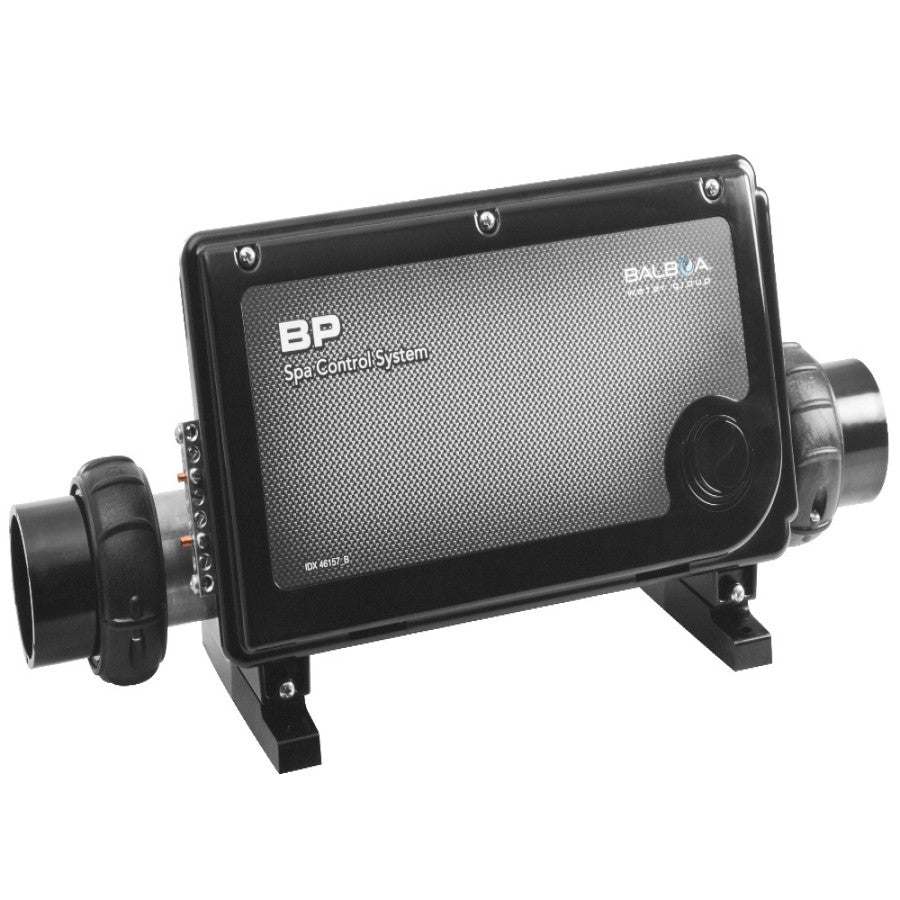

The Balboa BP200 G1 compact control system is designed for installation in limited spaces. In addition to its integrated 2 kW heater, the BP200 G1 is capable of managing:
Two-speed Pump 1
OR
Single-speed Pump 1 and a circulation pump
An ozonator
A projector (maximum 1 A)
An audio system

This control box features M7 technology, which utilizes temperature probes at both the inlet and outlet of the heater to accurately measure water flow. This approach is significantly more reliable than systems that rely on pressure switches or traditional flow detectors.
The BP200 G1 is compatible with TP series keypads and spaTouch touchscreen keypads. It can also be controlled remotely via smartphone with the addition of a WiFi module.

Dimensions:
Height: 221 mm
Housing Width: 321 mm
Heater Width: 381 mm (excluding fittings)
Housing Depth: 71 mm
Total Depth: 161 mm
Heater Connection: 2 inches (clamping rings and gaskets supplied)

Compatible Keypads:

TP200T, TP200W, TP260T, TP260W, TP400W, TP400T, TP500S, TP600, TP800, TP900, spaTouch (rectangular, oval, or trapezoidal)
Note: The BP200 is not compatible with auxiliary, non-screen keypads.
Power Supply:

The BP200 G1 system is pre-configured for single-phase operation but can also be configured for two-phase and three-phase setups (for distributing different devices across phases). If you have any questions, please refer to the configuration guide or contact us when placing your order, and we will handle the configuration before shipping. Don’t forget to replace your cable gland if necessary!
