Control SYSTEM BALBOA BP200G1 3.0KW (59368)
Control SYSTEM BALBOA BP200G1 3.0KW (59368)

Balboa BP200G1 Control Pack - 3.0KW (59368)

£579.00
£579.00
(-0%)

Inc VAT

Hurry up! only 0 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Control SYSTEM BALBOA BP200G1 3.0KW (59368)

Balboa BP200G1 Control Pack - 3.0KW (59368)

£579.00

Balboa BP200G1 Control Pack - 3.0KW (59368)

£579.00

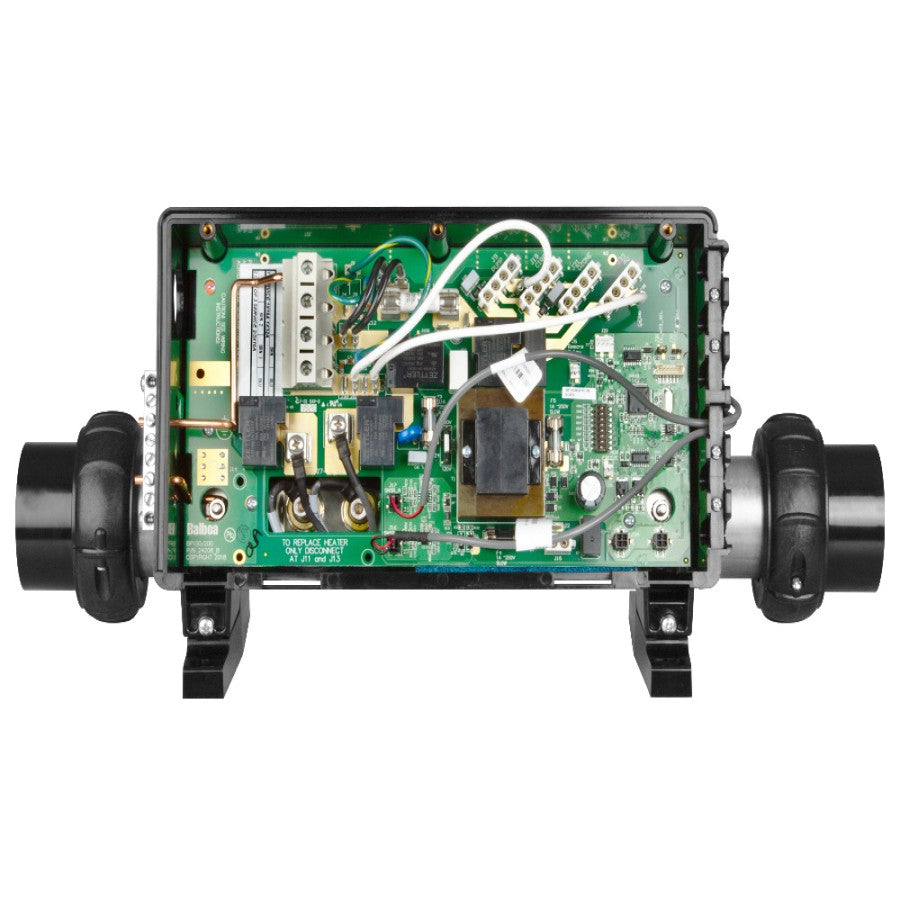

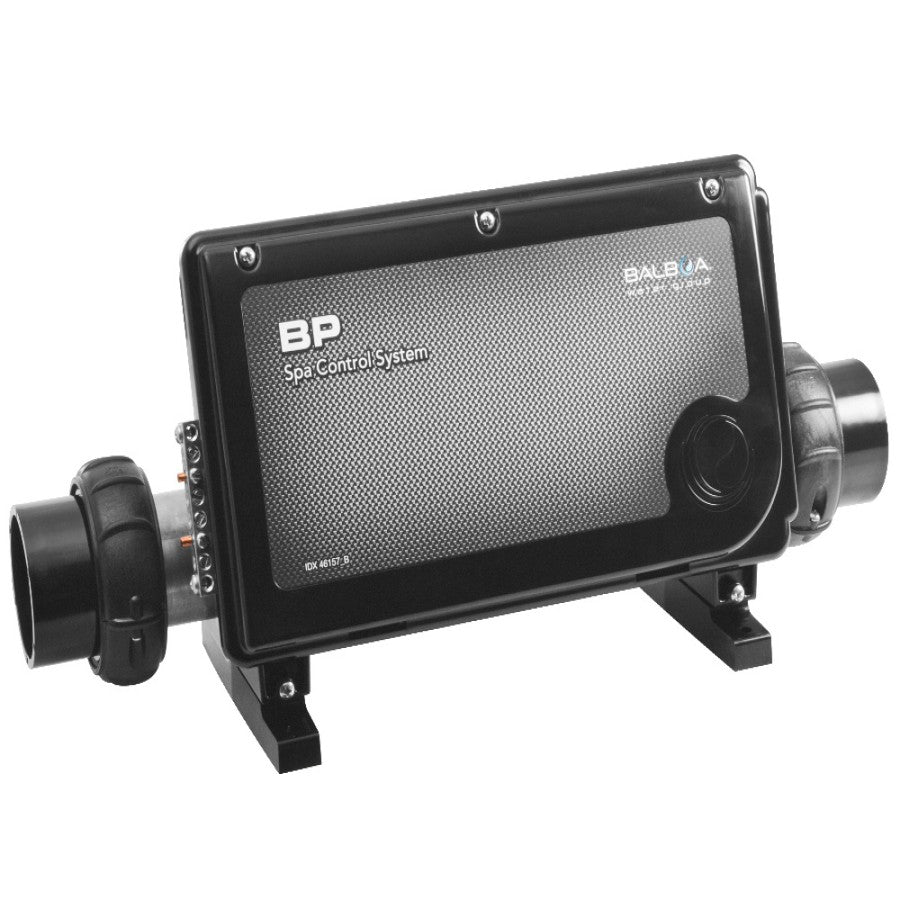

The Balboa BP200 G1 compact control system is specifically designed for installation in confined spaces. Equipped with an integrated 3 kW heater, the BP200 G1 can efficiently manage:

A two-speed Pump 1
OR a single-speed Pump 1 along with a circulation pump
An ozonator
A Light  (maximum 1 A)
An audio system

This control box features advanced M7 technology, utilising temperature probes at both the inlet and outlet of the heater to monitor water flow. This innovative approach enhances reliability compared to systems that rely on pressure switches or traditional flow detectors.

The BP200 G1 is compatible with TP series keypads as well as spaTouch touchscreen keypads. Additionally, it can be controlled remotely via smartphone with the installation of a Wi-Fi module.

Dimensions:

Height: 221 mm
Width of housing: 321 mm
Width of heater: 381 mm (excluding fittings)
Depth of housing: 71 mm
Total depth: 161 mm
Heater connection: 2 inches (clamping rings and gaskets included)

Compatible Keypads:

TP200T
TP200W
TP260T
TP260W
TP400W
TP400T
TP500S
TP600
TP800
TP900
spaTouch (rectangular, oval, or trapezoidal)

Please note that the BP200 is not compatible with auxiliary, non-screen keypads.

Power Supply:


The BP200 G1 system comes pre-configured for single-phase operation but can also be configured for two-phase or three-phase setups (allowing for the distribution of devices across different phases). If you have any questions, please refer to the configuration guide or contact us when placing your order, and we will ensure it is configured before shipping. Remember to replace your cable gland if necessary!

Balboa References:

System only (3 kW): 59190
System only (2 kW): 59192
Heater: 58419
