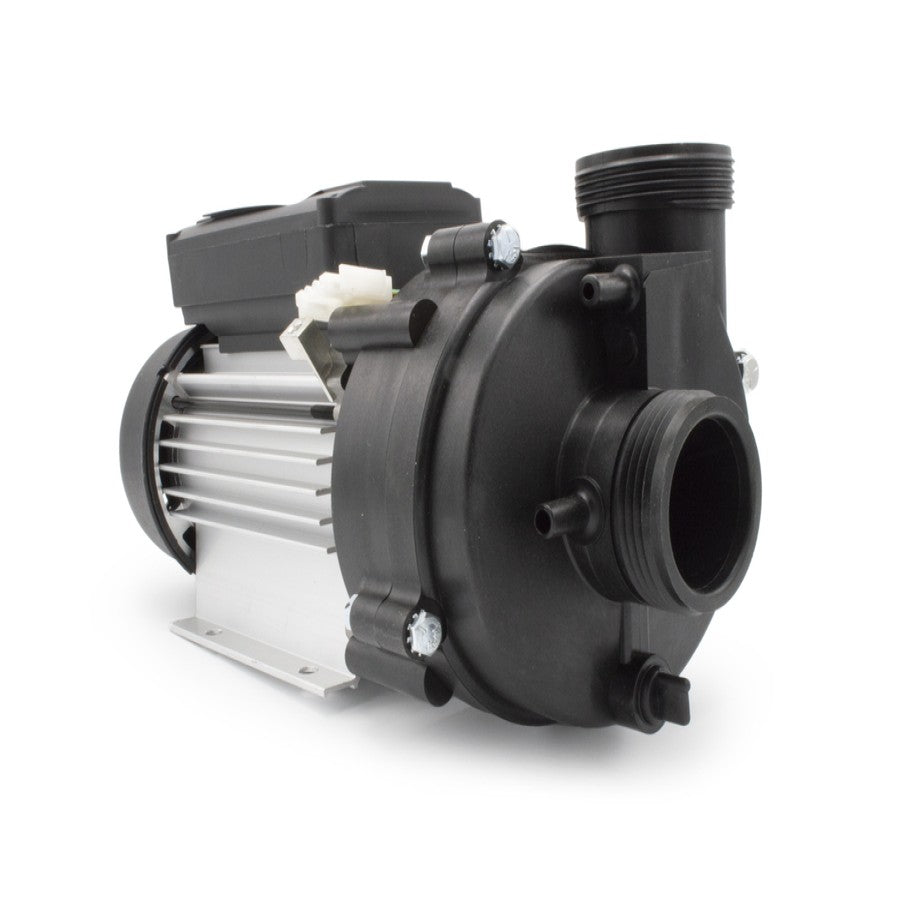

Balboa 0.25HP 1030025 Circulation Pump
(Formerly known as the Balboa High Performance Circulation Pump)
The compact Balboa 1030025 circulation pump is specifically engineered to provide reliable, continuous 24-hour water circulation in spa and hot tub systems. It is designed as a direct replacement for the discontinued Balboa Ultima pump widely used across Europe. This pump is well-regarded for its efficient, quiet operation and robust build quality, making it a trusted choice for spa maintenance and system longevity.
Balboa has recently introduced the 1031025 model, which shares identical technical specifications and the same wet end design as the 1030025. However, the 1031025 features a motor that is slightly longer (340 mm vs. 320 mm) and lower in height (175 mm vs. 205 mm), offering an alternative for installations where space and configuration require these dimensions.
Technical Specifications:
Power: 0.25 Horsepower (190 W)Motor Speed: Single Speed, 1400 rpm
Voltage/Current: 230V / 0.8A
Max Head: 14 meters
Max Flow Rate: 250 liters per minute (15 m³/h)

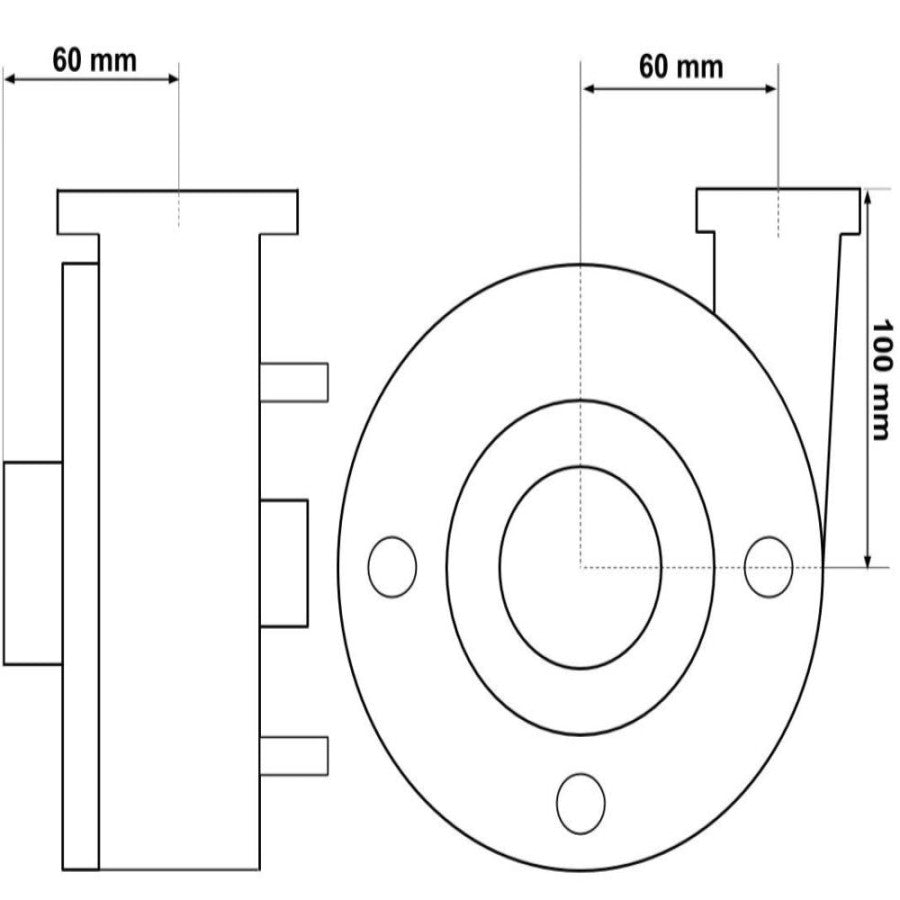

Hydraulic Design: 63 mm Centre Suction x 63 mm Low Discharge
Connection Type: Male threads, 1.5" MBT (Outside Diameter 62 mm)
Weight: 10.3 kg
Physical Dimensions:
Length: 320 mmWidth: 150 mm
Height: 205 mm
Installation and Wiring:
The pump comes pre-wired with a 110 cm cable but does not include a plug. Customers are encouraged to reuse wiring from their previous pump if in good condition. A detailed wiring diagram is conveniently located on the back of the junction box cover to assist with installation and troubleshooting.
Additional Information:

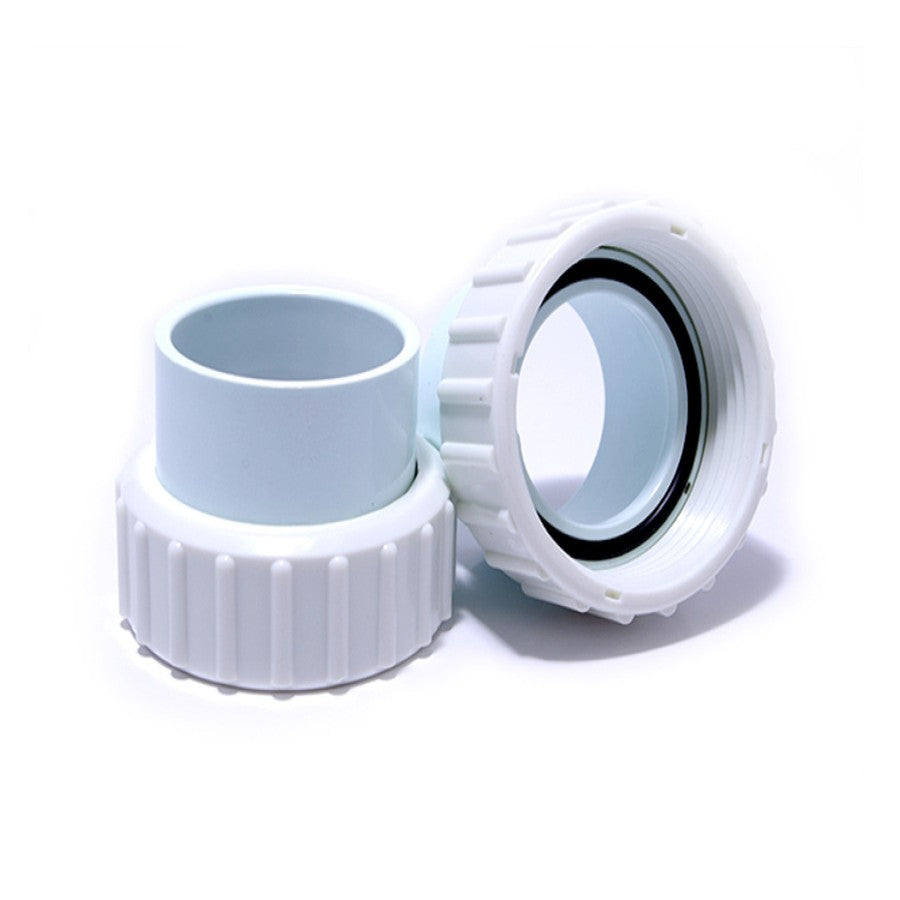

Pump unions for 1.5 inch pipes are available separately.This pump does not include pump unions.
Designed for continuous, 24/7 circulation to maintain water quality and spa performance.
Known for its quiet operation and energy efficiency.
Compatible with a wide range of Balboa spa systems and other hot tub brands.
Balboa Reference Number:
1030025
