Auxiliary (AX1) Push Button for Balboa GL Series & BP Series Systems
Relocate Functions from Main Control Panel for Enhanced Control.

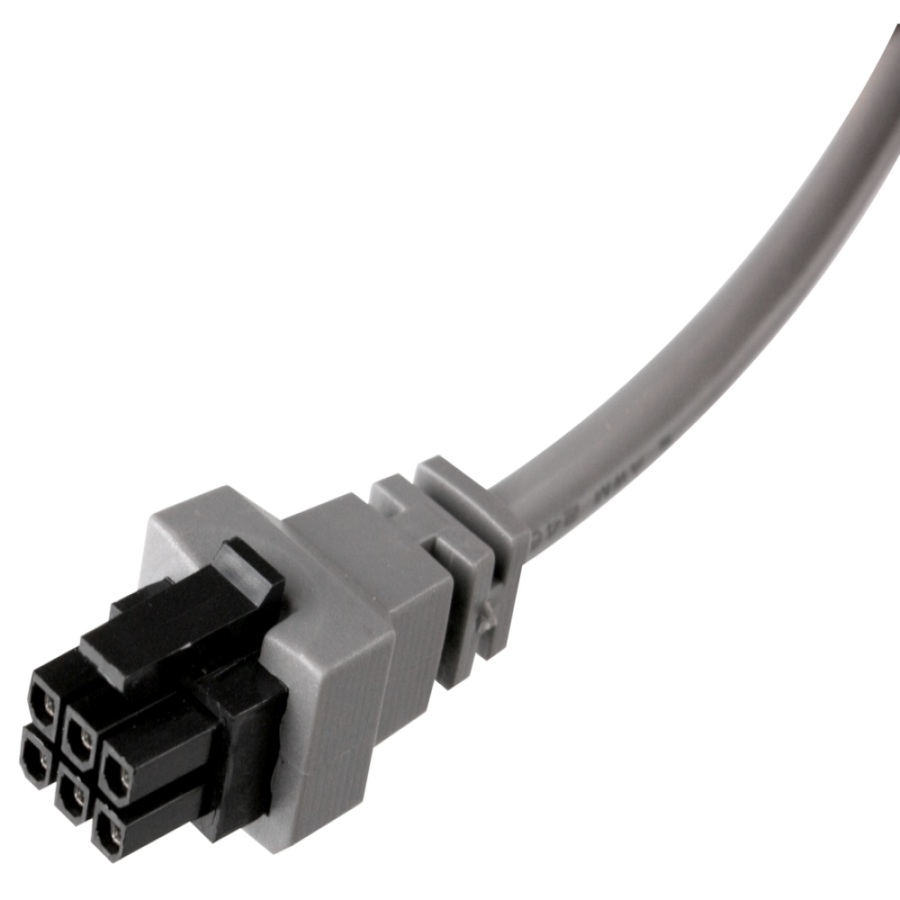

This auxiliary push button connects directly to an auxiliary keypad jack on the control system motherboard and is compatible with Balboa GL series enclosures (GL2000M3, GL2001, GL8000M3, and GL84P). It also works with select BP series systems, including BP6013G1, BP6013G2, BP6013G3, and BP2100G1.
This is the A1 version, designed to relocate the "Jets" (or Pump 1) function away from the main control panel. If you are unsure of compatibility, especially for BP series systems, please verify the reference of your current AX10 keypad or contact us for assistance.

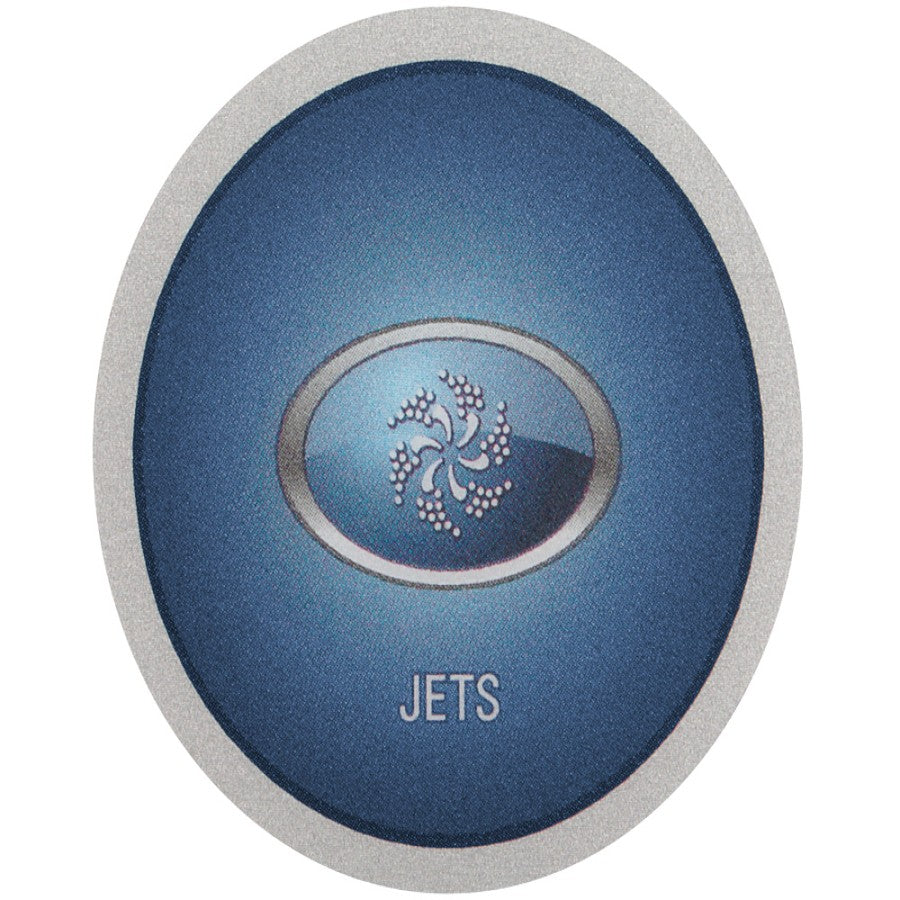

The push button is sold without its self-adhesive membrane, which must be purchased separately. The membrane can feature the specific function (Jets, Jets 2, Blower, etc.) or be a generic version.
Dimensions:
Face Diameter: 56 mm
Drilling Diameter: 31 mm
Height: 28 mm
Cable Length: 5 m
Balboa References:
Without membrane: 52803
With membrane: 52683
Wellis Reference:
ACM0670
We also offer other versions of the AX10 control keypad, depending on which function you want to relocate from the main control panel:
Keyboard Reference | Keyboard Designation | Function | With Membrane | Without Membrane |
---|---|---|---|---|
52683 | AX10 A1 | Jets / Pump 1 | 52683 | 52803 |
52764 | AX10 A2 | Jets 2 / Pump 2 | 52764 | 52804 |
52765 | AX10 A3 | Blower | 52765 | 52805 |
52766 | AX10 A4 | Light / Lighting | 52766 | 52806 |
55533 | AX10 A3 | Jets 3 / Pump 3 | 55533 | 52805 |
54710 | AX10 A4 | Jets 4 / Pump 4 | 54710 | 52804 |
