Control System Balboa GS501SZ - 3KW (54515-02)
Control System Balboa GS501SZ - 3KW (54515-02)

Balboa GS501SZ Control Pack - 3KW (54515-02)

£415.00
£415.00
(-0%)

Inc VAT

Hurry up! only 0 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Control System Balboa GS501SZ - 3KW (54515-02)

Balboa GS501SZ Control Pack - 3KW (54515-02)

£415.00

Balboa GS501SZ Control Pack - 3KW (54515-02)

£415.00

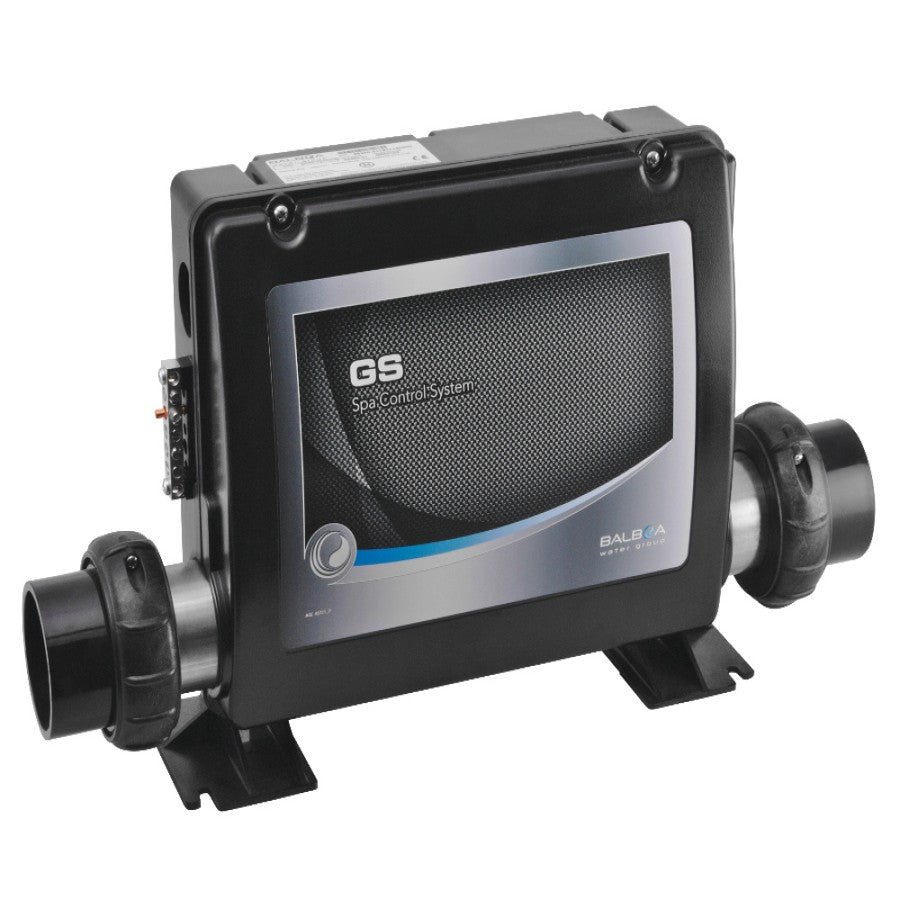

The Balboa GS501SZ control system, equipped with a 3 kW integrated heater, offers comprehensive management for:

Pump 1: single-speed or dual-speed
Circulation pump
Blower: For an alternative option, replace the blower with a second single-speed pump using the GS504SZ model
Ozonator
Light
Audio system

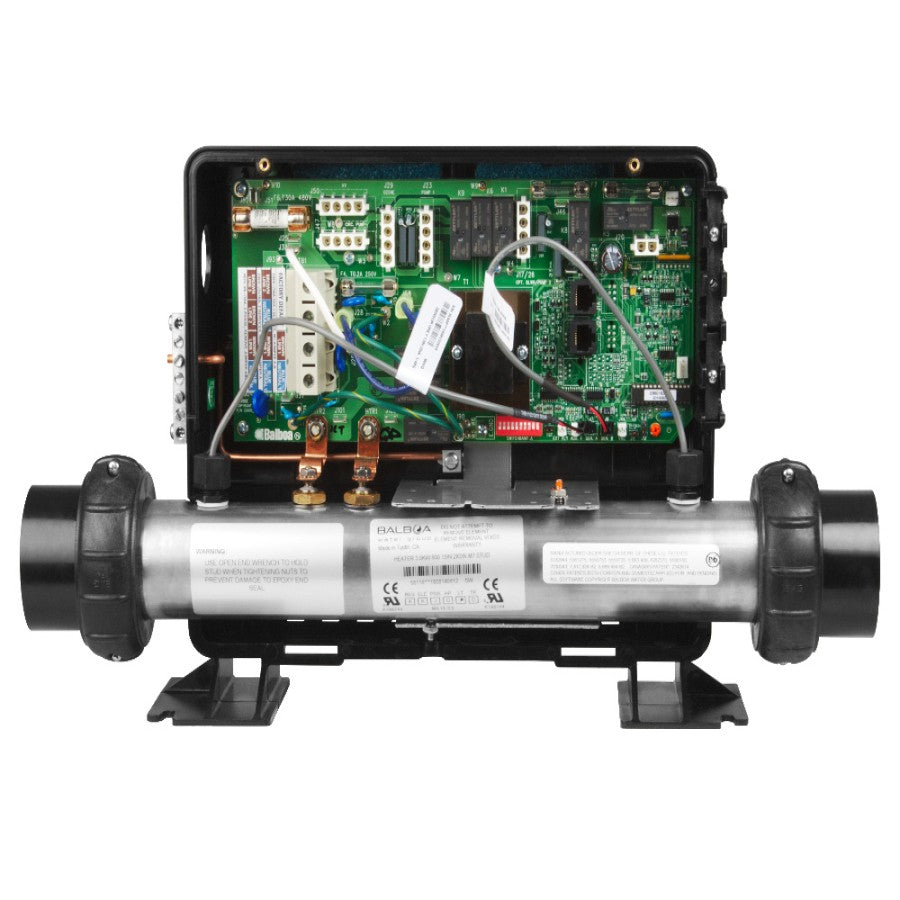

This control box features advanced M7 technology, which utilizes temperature probes at both the inlet and outlet of the heater to monitor water flow. This innovative design significantly enhances reliability compared to systems that rely on pressure switches or traditional flow detectors.

Connections for each device—such as the pump, blower, ozonator, and floodlight—are made using AMP jacks.

For installations with a second single-speed pump in place of the blower, we recommend the GS504SZ. Additionally, when paired with an X-P231 expansion card, this control system can be upgraded to the GS510SZ.

As with all Balboa "SZ" systems, the GS501SZ allows users to select from three operating modes: standard, economy, and standby.

Dimensions:

Height: 268 mm
Width: 311 mm (housing without heater), 381 mm (heater without fittings)
Depth: 117 mm
Heater connection: 2 inches (clamping rings and gaskets included)

Compatible Keypads:

VL600S
VL601S
VL700S
VL701S
VL702S

Power Supply:

The GS501SZ system is pre-configured for single-phase operation but can also be configured for two-phase and three-phase setups (allowing the distribution of devices across different phases). If you have any questions, please refer to the configuration guide or contact us when placing your order, and we will ensure the system is configured before shipping. Don't forget to replace your cable gland if necessary!

Balboa References:

GS501SZ Full Enclosure: 54515-02
Heater: 58118
Motherboard: 54516-02
