Niagara Pump 3HP 1 Speed Amp 230V Balboa (1023331/P529136-S)
Niagara Pump 3HP 1 Speed Amp 230V Balboa (1023331/P529136-S)

Balboa Niagara Pump 3HP 1 Speed (1023331)

£406.52
£406.52
(-0%)

Inc VAT

Hurry up! only 1 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Niagara Pump 3HP 1 Speed Amp 230V Balboa (1023331/P529136-S)

Balboa Niagara Pump 3HP 1 Speed (1023331)

£406.52

Balboa Niagara Pump 3HP 1 Speed (1023331)

£406.52

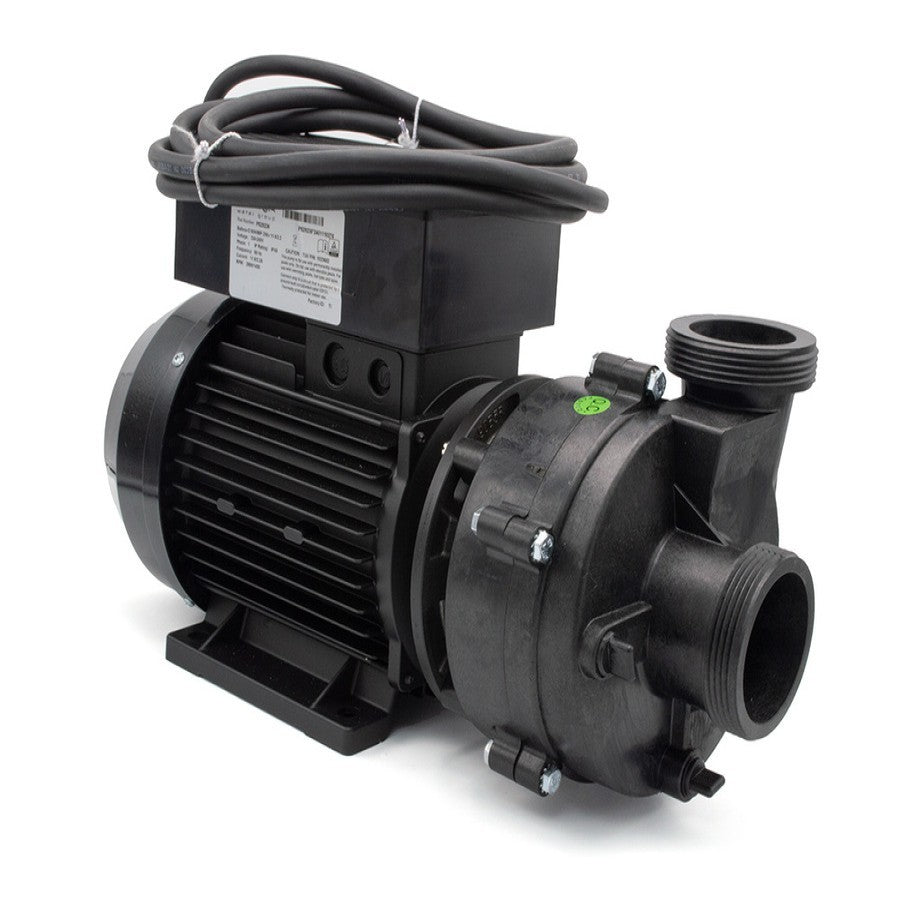

Balboa Niagara Spa Pump – 3HP – 1 Speed
79mm Centre Suction x 79mm Side Discharge

Premier Niagara pumps are the ultimate benchmark in design, flexibility and performance. From small applications for zone seating and focused therapy up to multi pump configurations to run 100+ jetted systems, Niagara pumps supply the specific performance features you require and the long service life and powerful performance spa owners demand. Niagara pumps offer the options you need...an energy-efficient package, unsurpassed design, flexibility, ease of installation, high flow rate and dependable operation.

Common Part Numbers (3HP / 1-Speed):
1023331, 1023018, 1023038, 1023005, 1023036, 1023059, 1023060

Key Features:

3.0 Horsepower
Single-Speed Operation
High Flow Rates Exceeding 44 m³/h
Centre Suction with Side Discharge
Energy-Efficient Motor Options
Carbon Ceramic Seals with Viton Elastomers
Multi-directional Volute Mounting
Compatible with 63mm, 2", and 2.5" Unions

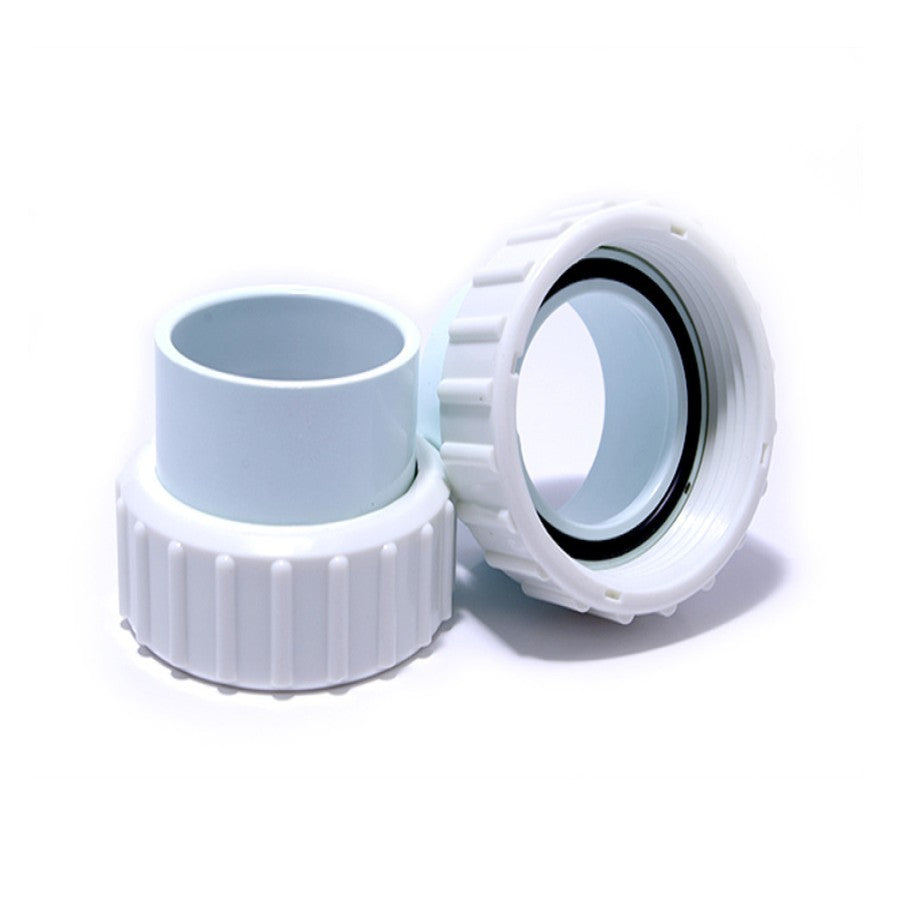

Supplied with Pump Unions and Cable
Designed to Replace Vico and Sta-Rite Ultimax Pumps
Same Wet End Fitment as Previous Ultimax Models
VDE Approved to EN60335-1 and EN60335-2-41
Low Profile Electrical Box for Easy Installation
Uses 2" Connections

Specifications:

Max Head: 16.8 m
Max Flow: 48 m³/h
RPM: 2900
Power – P1: 2.2 kW
Voltage / Frequency: 230V / 50Hz
Amp Draw: 11.5 A
Motor Type: Finned Body (European Style)
Frame Size: 56F
Cord / Plug Type: 3 Core AMP
Wet End Configuration: Centre Suction, Side Discharge
Union Connection: 2.0" (79 mm)
Shaft Seal Type: PS-201
Thread Type: Male – Buttress
Part No.: 1215186

Dimensions:

Length: 460 mm
Width: 203 mm
Height: 203 mm

Important:
Balboa Niagara pumps have recently undergone changes in design. New pumps come with a different style of motor. Please check the photos and verify the new sizes are suitable for your available space before installation.

The Balboa Niagara 3HP Single-Speed pump is a powerful and efficient solution for demanding spa environments, offering long-term reliability and superior flow performance.
