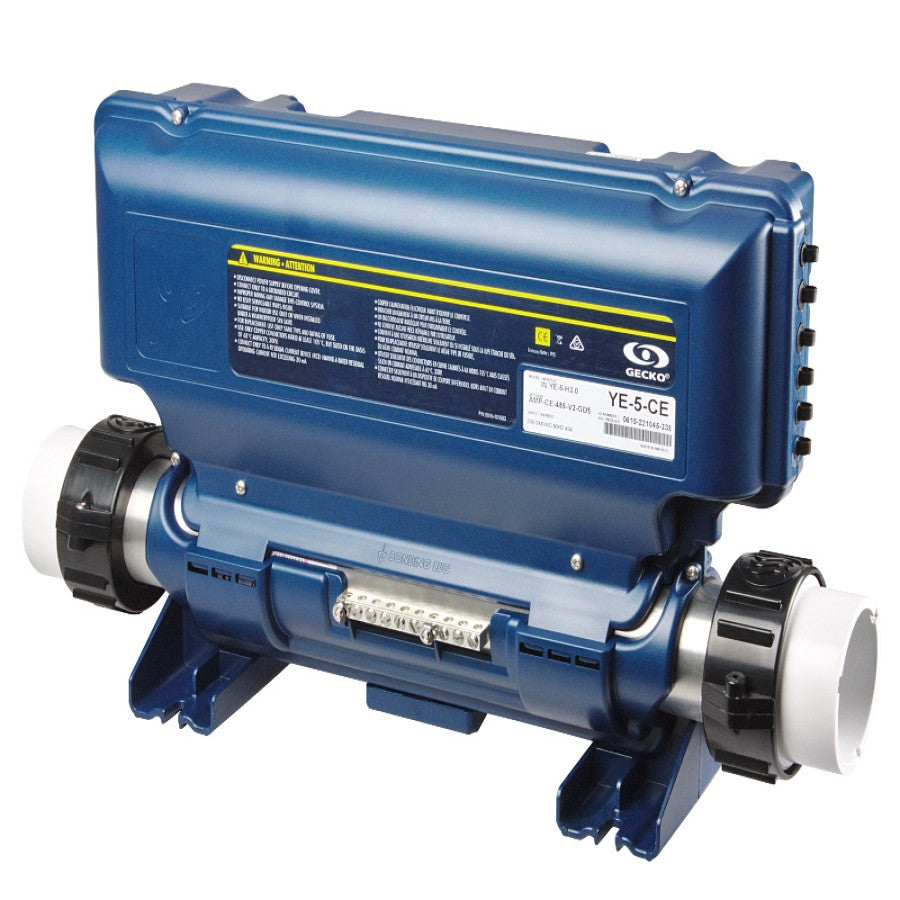

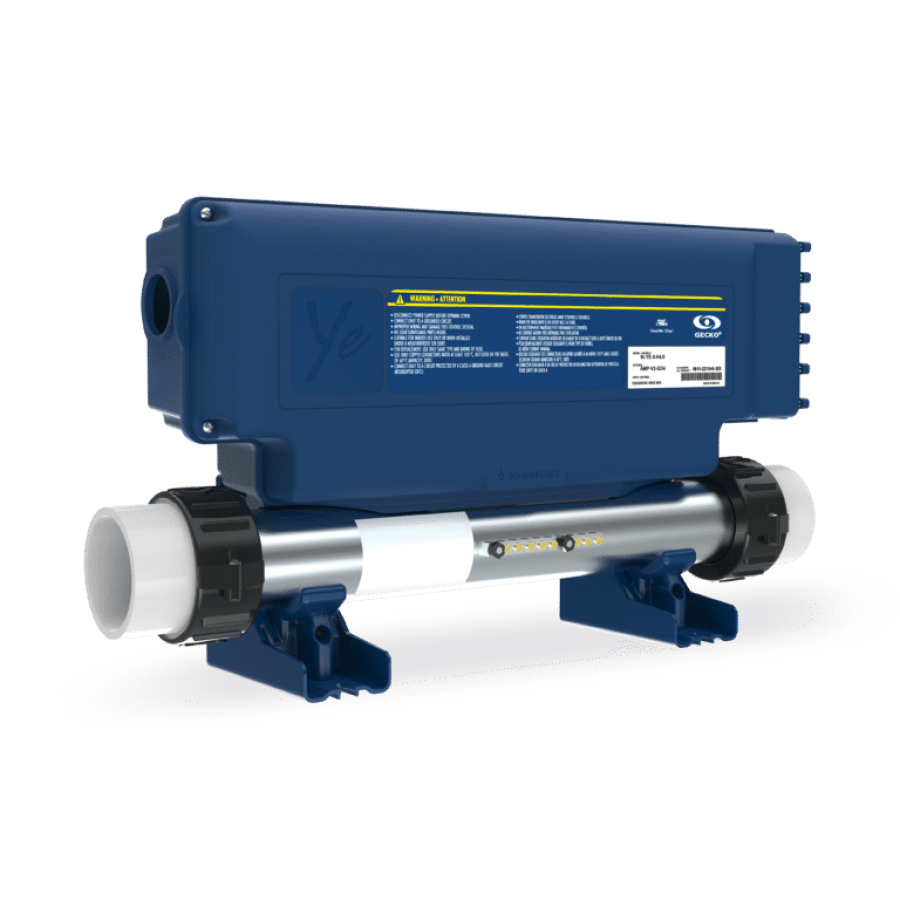

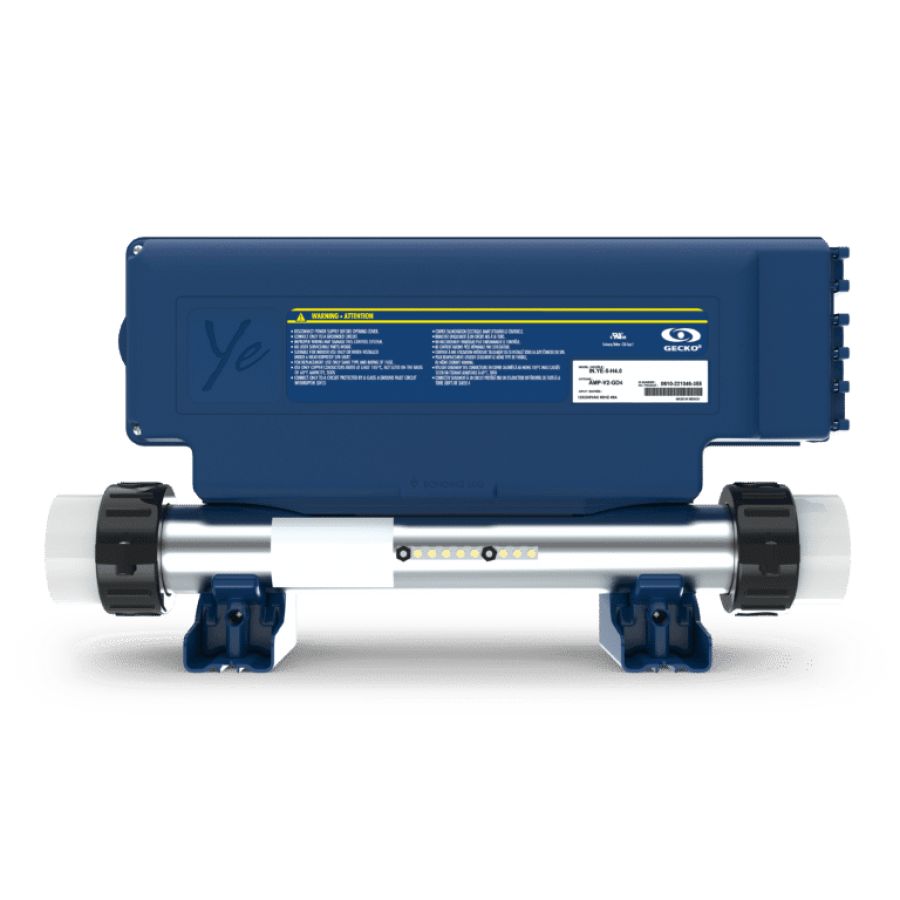

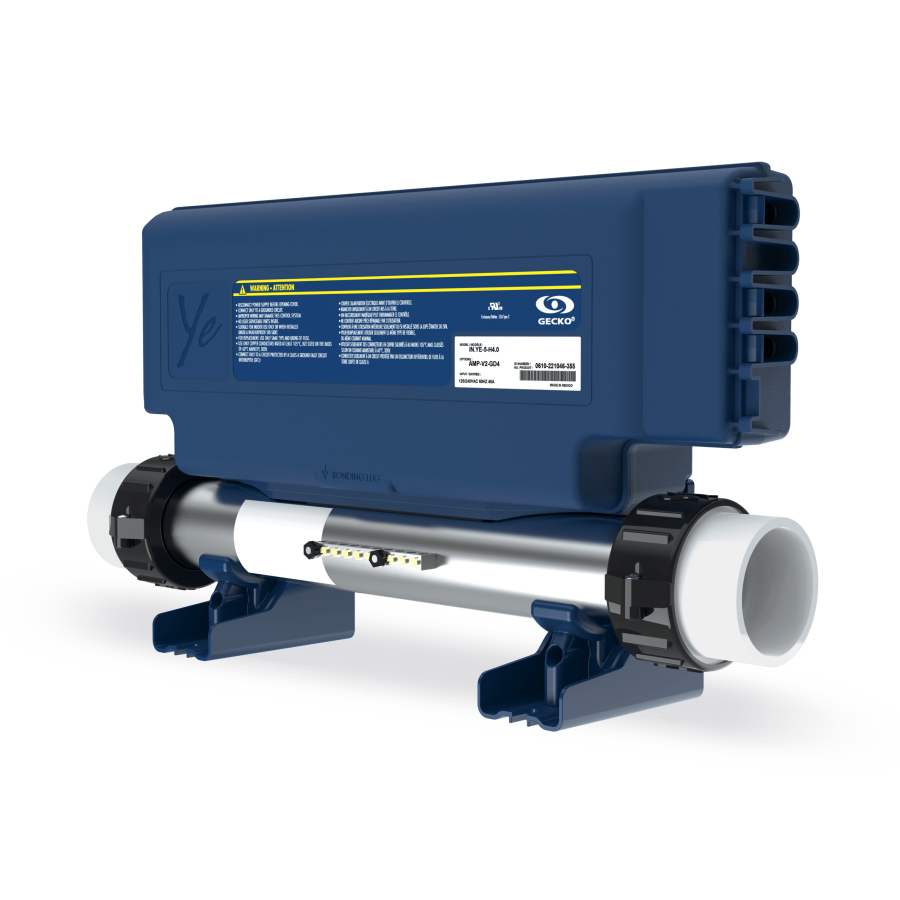

Gecko IN.YE-5 V2 Control Board System with RS485
(Gecko Reference: 0610-221045-338 | Wellis Reference: ACM0756)

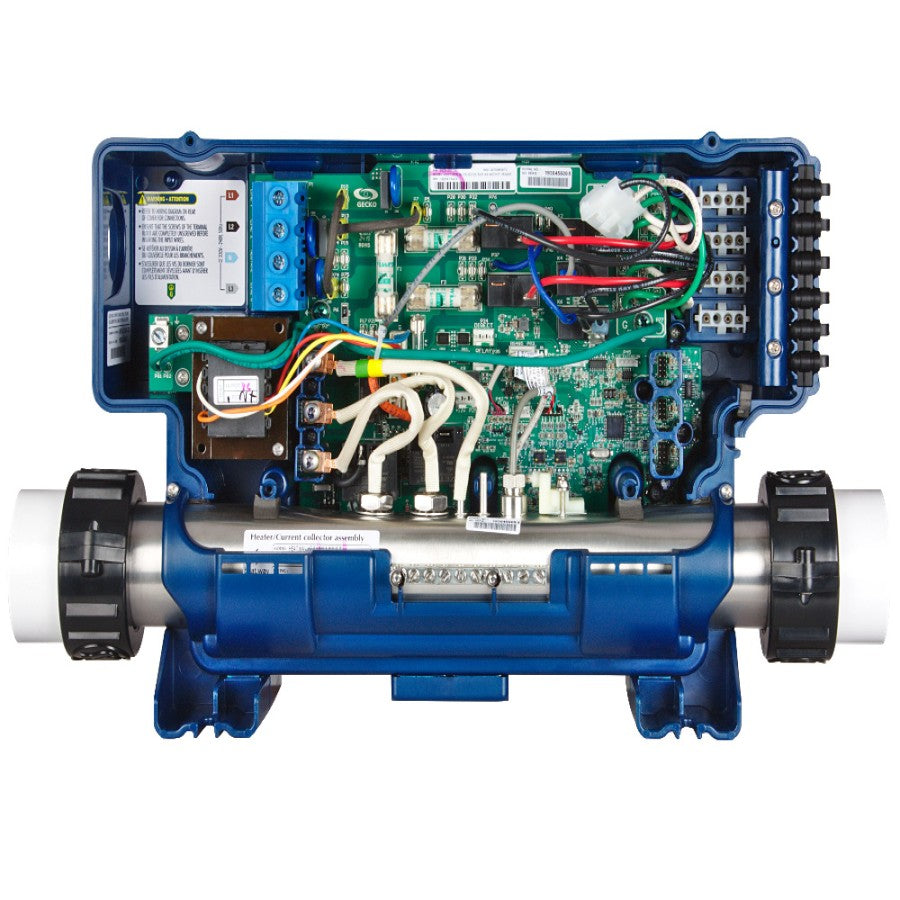

The in.ye-5 control system from Gecko is designed to deliver dependable, straightforward control for a wide range of spa setups. Featuring a powerful 3.0 kW in-flow heater and 5 integrated relays, it can manage multiple pumps and accessories with ease, making it a versatile choice for custom spa installations.

Flexible Output Configuration:
With up to 5 available outputs, the system supports configurations including single-speed and dual-speed pumps, blowers, circulation pumps, and ozone systems. Dual-speed pumps require 2 relays, so planning your setup accordingly is essential.

Key Features:

5 outputs for pumps and accessories
(Note: Dual-speed pumps require 2 outputs)

3.0 kW heater with in-flow heating design

Outputs for:
Pump 1
Pump 2
Pump 3
Pump 4
Pump 5
Blower
Circ Pump
Ozone

230V outputs for ozonator and auxiliary equipment
12V output for projector lighting (cable not included)
Easy configuration via top-side keyboard with pre-registered setups

Example Setup:
A typical configuration may include:

Pump 1 (2-speed using 2 outputs)
Pump 2 (1-speed)
Blower
Ozone

Dimensions:

Box Width: 420 mm
Max Width (with connections): 498 mm
Height: 273 mm
Depth: 126 mm

Compatible Keyboards:

Main Keypads:
in.k200, in.k300, in.k336, in.k8, in.k450, in.k500, in.k600, in.k800, in.k1000, in.k1001
Auxiliary Keypads:
in.k120

Manufacturer References:

Gecko: 0610-221045
Wellis: ACM0756

The Gecko in.ye-5 V2 control board offers a smart, reliable foundation for your spa's control system, with broad compatibility and intuitive configuration options to suit a wide range of setups.
