Control Board Gecko IN.YT-7 (0611-221027-349)
Control Board Gecko IN.YT-7 (0611-221027-349)

Gecko IN.YT-7 Control Board System (0611-221027-349)

£666.00
£666.00
(-0%)

Inc VAT

Hurry up! only 0 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Control Board Gecko IN.YT-7 (0611-221027-349)

Gecko IN.YT-7 Control Board System (0611-221027-349)

£666.00

Gecko IN.YT-7 Control Board System (0611-221027-349)

£666.00

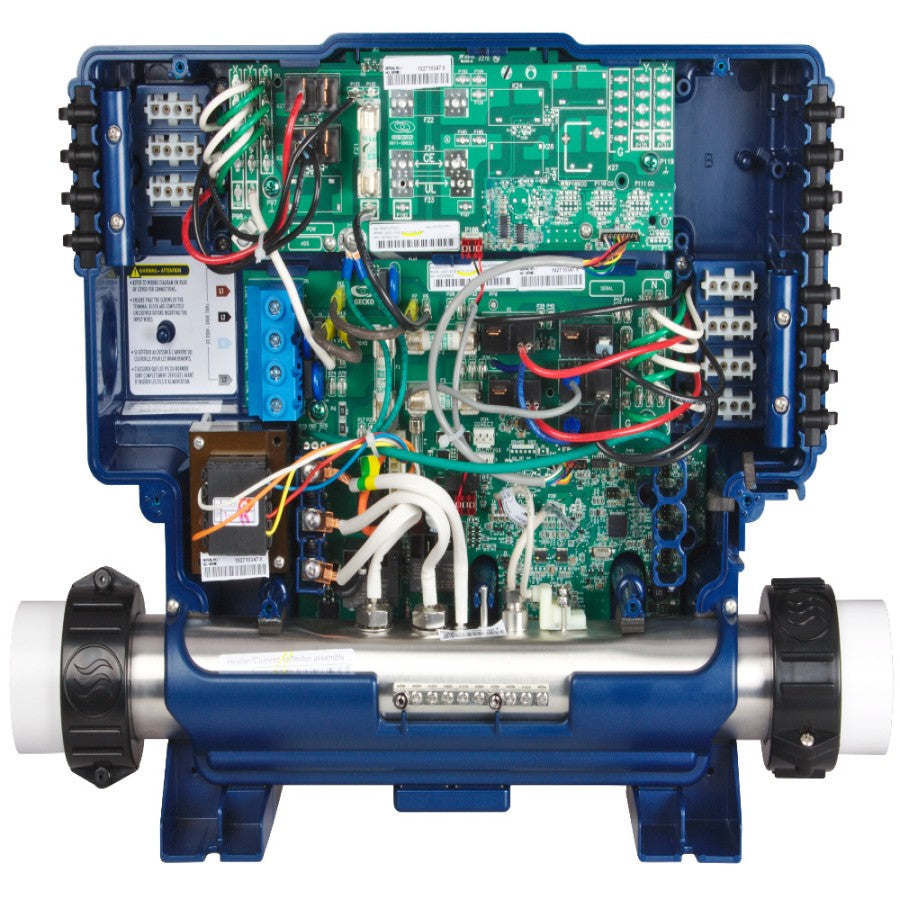

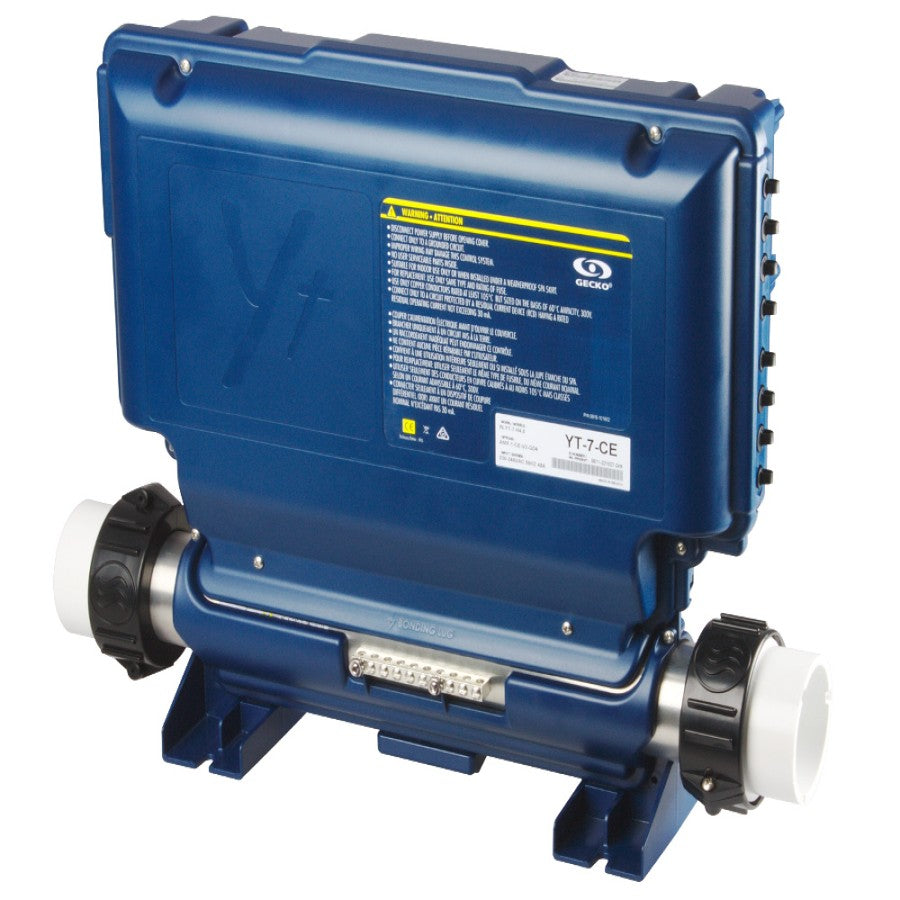

The Gecko in.yt-7 control system, equipped with an integrated 4kW heater, is the most powerful version of Gecko's Y series, designed for large and high-demand spa systems, including swim spas.

Featuring 7 relays (hence the "7" in its name), this system can manage up to 7 pumps and/or blowers, with the understanding that a two-speed pump requires 2 relays. With 29 possible configurations, the in.yt-7 is incredibly versatile, allowing you to tailor it to your spa's needs. You can configure the system to manage:

Up to 3 dual-speed pumps or 1 dual-speed pump and 4 single-speed pumps
5 single-speed pumps
A circulation pump
A blower
An ozonator
A lighting system
An audio system

The in.yt-7’s adaptability makes it an ideal choice for swim spas, which require a robust control system for managing multiple components.

Easy Configuration

The in.yt-7 system is configured through the keypad, where you can choose from a variety of pre-registered options. For additional support, please refer to the system’s getting started guide or contact us for assistance.

Dimensions:

Box width: 422 mm
Max width with connections: 498 mm
Height: 368 mm
Depth: 120 mm
Heater connection: 2 inches (clamping rings and gaskets supplied)

Compatible Keyboards:

Main: in.k200, in.k300, in.k336, in.k8, in.k35, in.k450, in.k500, in.k600 (single interface only), in.k800, in.k1000, in.k1001
Auxiliary: in.k120

Technical Specifications:

Power Supply: 230V 50Hz, pre-configured for a three-phase connection. For other configurations such as single-phase, two-phase, or three-phase Delta, please contact us for guidance.

Outputs:8 outputs in 230V AC on 4-pin AMP sockets
1 output in 12V AC for a 3-pin connector
3 in.link socket outputs: 1 main keyboard connector and 2 communication ports for in.stik, in.interface, in.touch2, in.clear, in.grid, and in.stream2


Gecko Reference Numbers:
0611-221027-349

For more information or to discuss your spa’s specific needs, please feel free to reach out.
