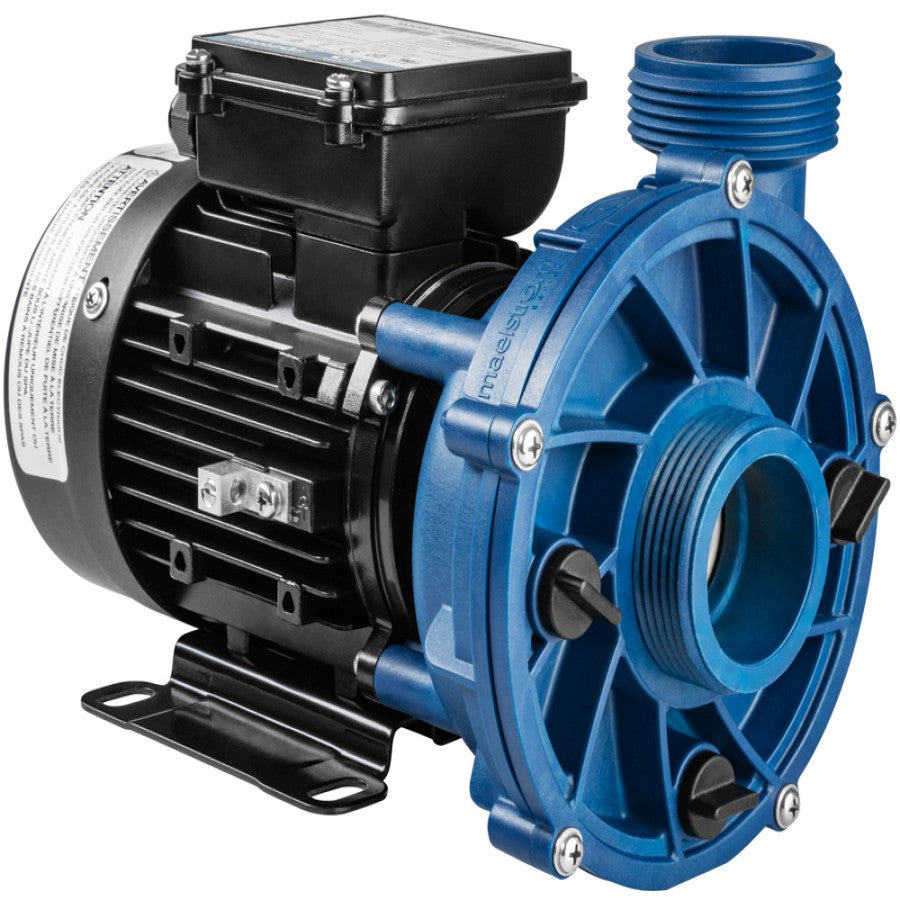

Maelstrom CMS-1 Circulation Pump
Reliable. Efficient. Direct Replacement for Aquaflo CMHP
The CMS-1 is a high-performance circulation pump engineered as a direct replacement for the now-discontinued Aquaflo CMHP (PN 02420014-2010). With equivalent fit and performance, the Maelstrom CMS-1 ensures an easy transition and long-lasting spa operation.
Product Overview:
The Maelstrom CMS-1 is purpose-built for spa and hot tub circulation, combining energy efficiency with durability. Featuring a 0.2 HP single-speed motor, it delivers optimal water flow while consuming minimal energy. Designed for continuous use, it includes a high-temperature capacitor rated up to 85°C to ensure reliable performance under demanding thermal conditions. A Gecko high-quality universal seal reduces the risk of leaks, while the sealed bearing system supports smooth, quiet operation. Additional features such as a removable foot, 1.5" intake/discharge, and three wing nut-style drain plugs make servicing easy and hassle-free.
Key Specifications:
Motor Power: 0.2 HP, single-speed
High-Temperature Capacitor: Rated up to 85°C for extended durability
Seal: Gecko high-quality universal seal
Bearing Type: Sealed for quiet, low-maintenance performance
Intake and Discharge: 1.5" diameter connections
Tail Pieces: Includes two 1.5" tail pieces
Drain Plugs: Three wing nut-style drain plugs for quick draining
Cable: 96" (2.4 m) with AMP plug
Wet End Position: 0 o’clock orientation for simplified installation
Additional Adaptors Available:
1.5 to 2" Adaptor (PN 0800-500024)
1.5" Union Extender (PN 0800-500028)

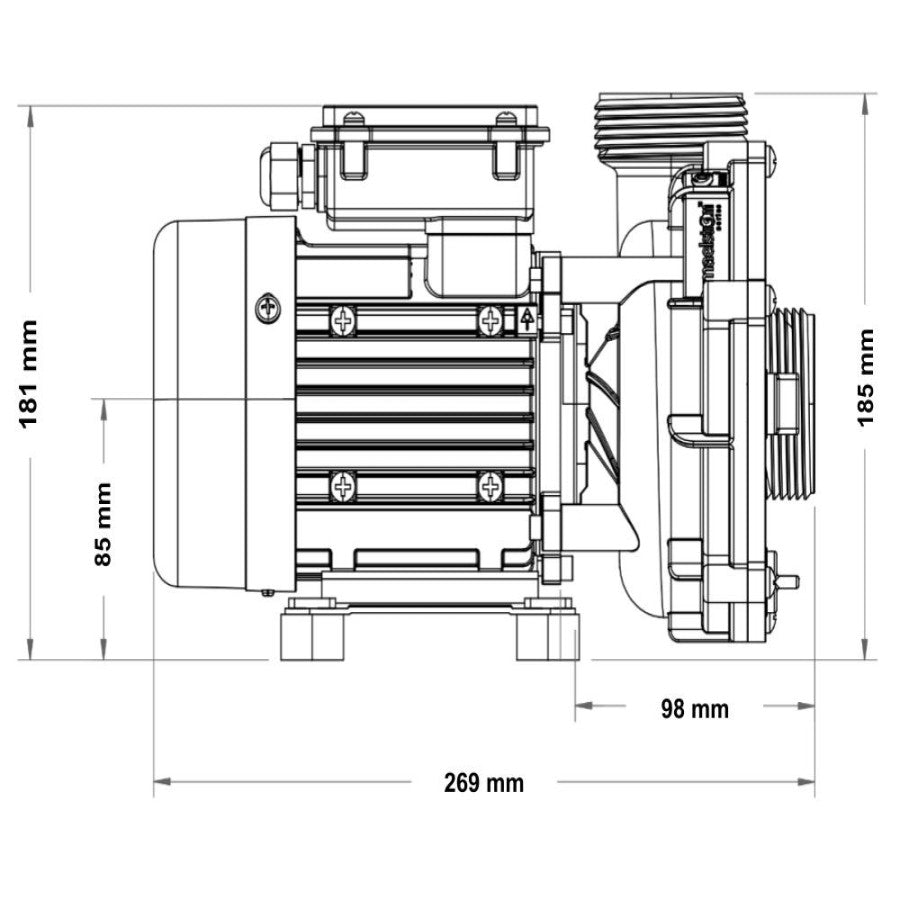

Dimensions:
Length: 269 mm
Height: 180 mm
Width: 163 mm
