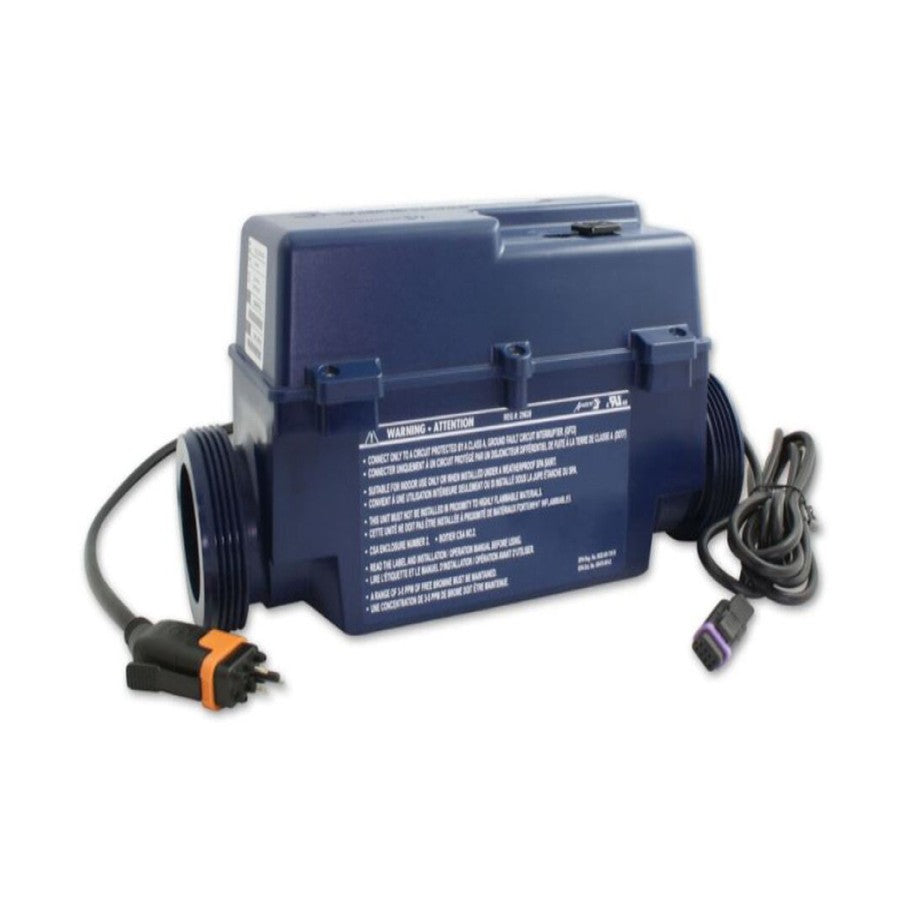

Gecko IN.CLEAR-200 Bromine Generator System

Gecko in.clear Bromine Generator – Advanced Automated Spa Water Sanitisation

The Gecko in.clear Bromine Generator is a state-of-the-art disinfection system designed to automatically produce and release bromine, keeping your spa water clean, clear, and safe with minimal effort. By generating bromine on demand, the system reduces the need for manual chemical dosing while effectively eliminating bacteria, algae, and organic contaminants introduced during spa use.

Bromine is an ideal sanitizer for spas thanks to its long-lasting stability, low sensitivity to pH changes, and virtually odour-free performance—ensuring consistent, high-quality water.

Please Note, The In.Clear is not useable with any Chlorine products

Effortless Installation & Operation

The in.clear system is designed for simplicity and convenience:

• Control and adjust bromine output directly from your spa’s existing control panel.

• Once installed, simply add the recommended amount of BromiCharge (sodium bromide) to your spa water.

• The system’s low-voltage cell continually converts the bromide salt into active bromine for ongoing, reliable disinfection.

The in.clear unit comes pre-installed on select Gecko-controlled spas and can also be retrofitted to most new or existing spas— even those not originally equipped with a Gecko system.
For standalone installations, the in.k200 keypad is required.

Compatible Keypads

For Gecko-controlled spas:

• in.k500

• in.k800

• in.k1000

• in.k1001

For standalone or non-Gecko spas:

• Requires the in.k200 keypad

System Dimensions

• Height: 155 mm

• Width: 277 mm

• Thickness: 120 mm

Connection Specifications

• Male threaded connectors, 78 mm outer diameter (2" MBT type)

• Compatible unions available in 2-inch and 1.5-inch sizes

• A 3/4-inch tubing connection is possible with a union fitted with a reducer

Cabling & Compatibility

• Supplied with a Quick Connect cable (three flat female connectors) for Gecko Y-series systems (e.g., in.yj-3, in.ye-5) and any controller using Quick Connect tabs.

• The former in.link version for Gecko X-series systems (in.xm2, in.xe) is no longer produced.

• Existing cables from other disinfection units may be reused—contact us if you need guidance.

Technical Specifications

• Maximum water volume: Up to 2000 litres

• Electrode lifespan: Approximately 30,000 hours (normal use)

BromiCharge Dosing Guide

Recommended dose:

• 0.143 kg per 100 litres of water

Example:

• A 1200-litre spa requires 1.72 kg of BromiCharge (12 × 0.143 kg)

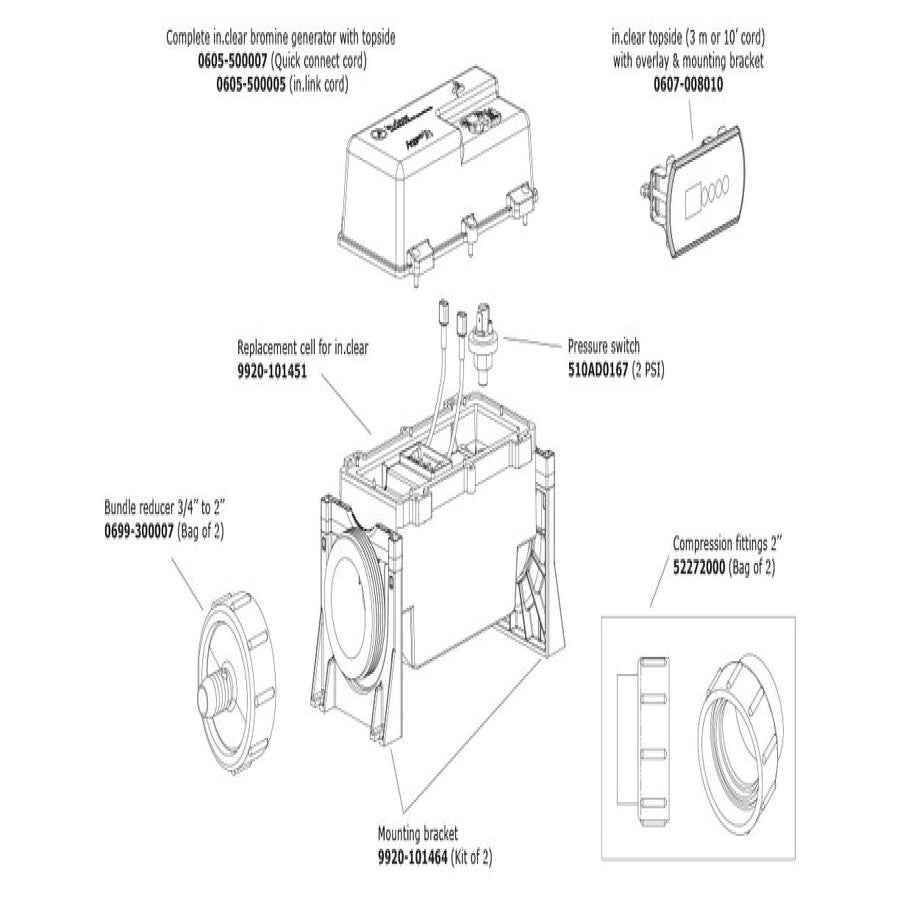

Gecko Part Numbers

• in.link Version: 0605-500008

• Quick Connect Version: 0605-500010
