Pump DH1 LX
Pump DH1 LX
Pump DH1 LX

LX Circ Pump DH1 - 1HP - Single Speed (1.5"x1.5")

£98.99
£98.99
(-0%)

Inc VAT

Hurry up! only 69 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Pump DH1 LX

LX Circ Pump DH1 - 1HP - Single Speed (1.5"x1.5")

£98.99

LX Circ Pump DH1 - 1HP - Single Speed (1.5"x1.5")

£98.99

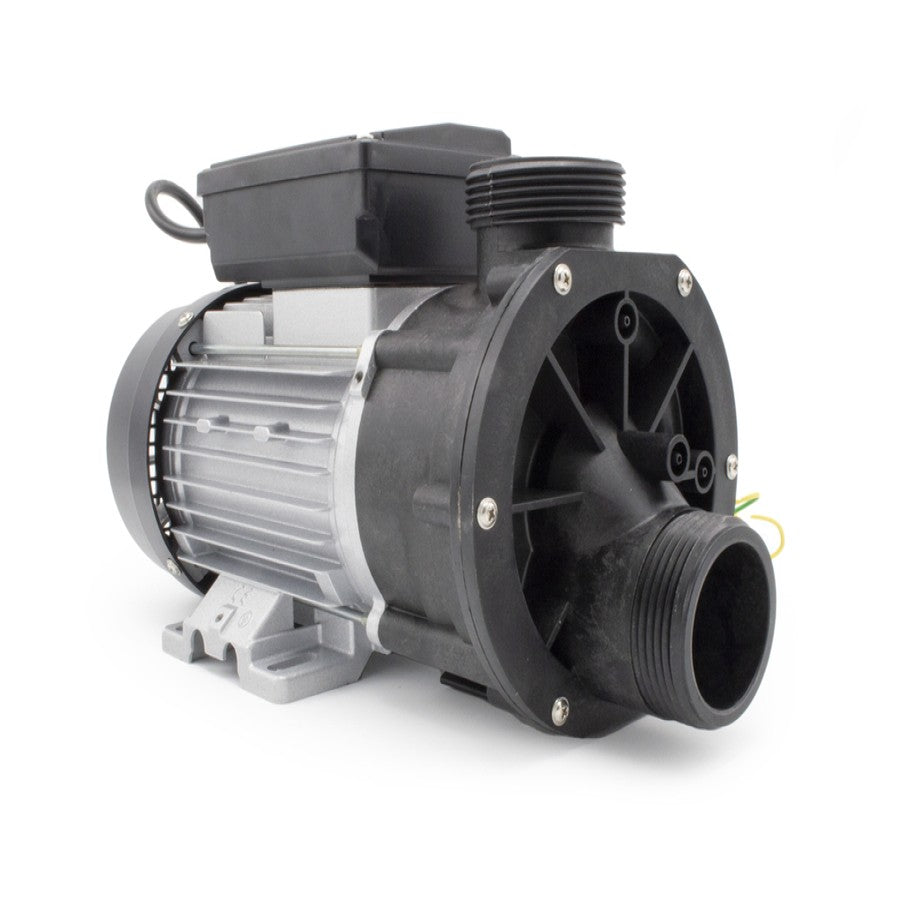

The DH1.0 LX circulation pump, featuring a 1hp single-speed motor, is specifically designed for Hot Tubs and Spas. Easily recognizable as part of the DH series of LX pumps, there has only ever been one model of the DH1.0 pump. Our stock includes the latest version, equipped with upgraded ceramic and Viton shaft seals in the wet end, addressing the premature seal failure issues of previous models.

This pump features a center discharge configuration, meaning the inlet and outlet plumbing union connections are aligned, unlike the more common side discharge models where the connections are offset.

These circulation pumps are widely used in a variety of hot tubs and spas, including those from both Chinese and American brands.

The pump's wet end can be easily rotated from the standard 12 O'clock position to either the 3 O'clock or 9 O'clock position by simply removing the four bolts securing it to the motor.


63mm Centre Suction x 63mm Centre Discharge


Dimensions ( L x W x H)

345 x 200 x 260 (mm)

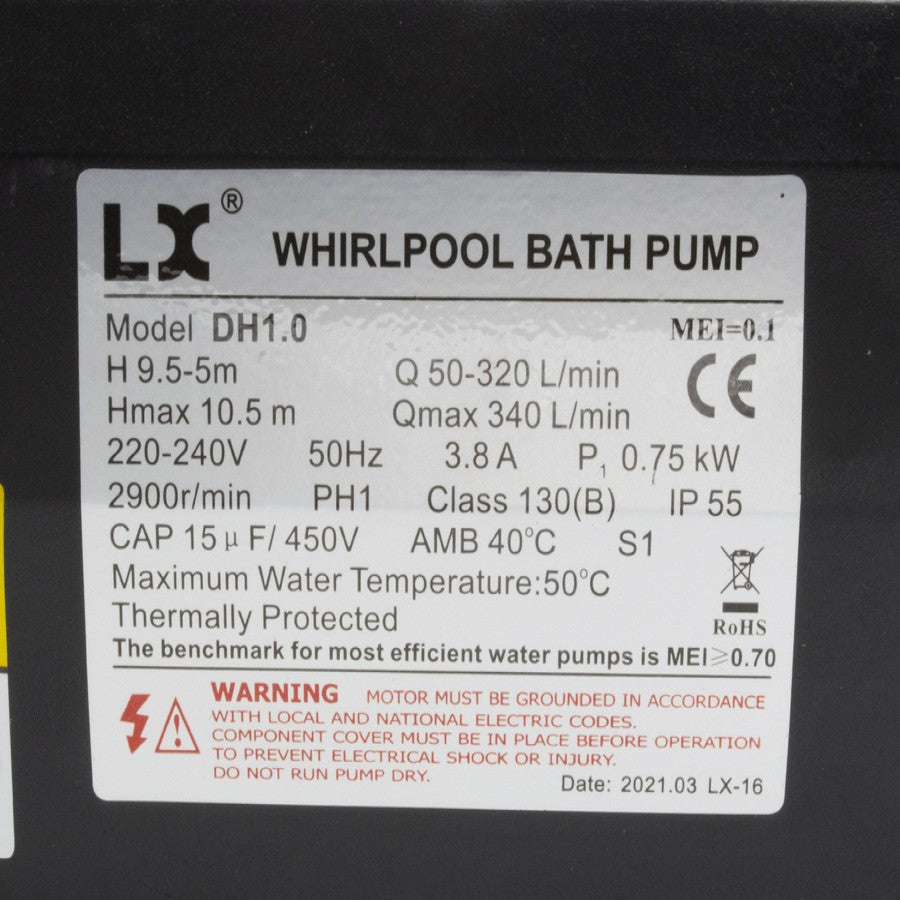

Product Information

1.0 Horsepower
Single Speed
1.5" Connections
High Speed: 1.0HP / 0.75kW
Max. Head: 141m
Max. Flow: 340 L/min

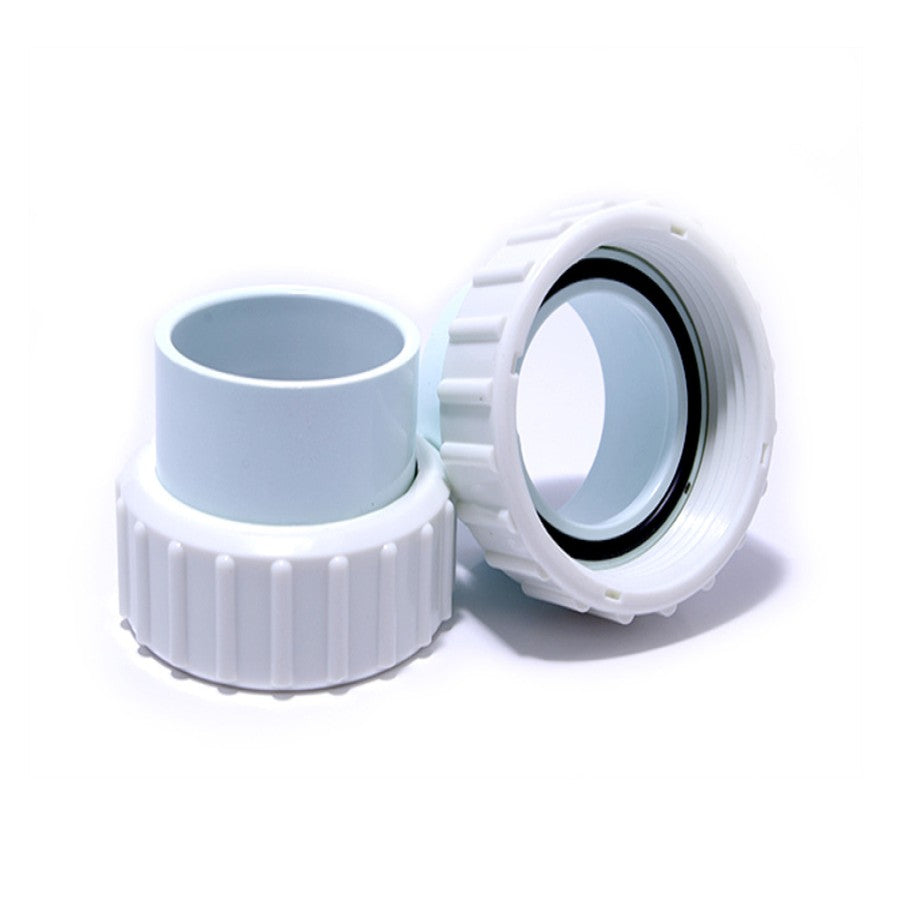

Pump Unions Included

Weight of item: 8.4 Kg's
