Seal Kit for LX Pump (LXB-16)

LX Seal Kit for LX Pump (LXB-16)

£19.99
£19.99
(-0%)

Inc VAT

Hurry up! only 139 left
Order within the next hours minutes to receive it. Estimated delivery is between and
Seal Kit for LX Pump (LXB-16)

LX Seal Kit for LX Pump (LXB-16)

£19.99

LX Seal Kit for LX Pump (LXB-16)

£19.99

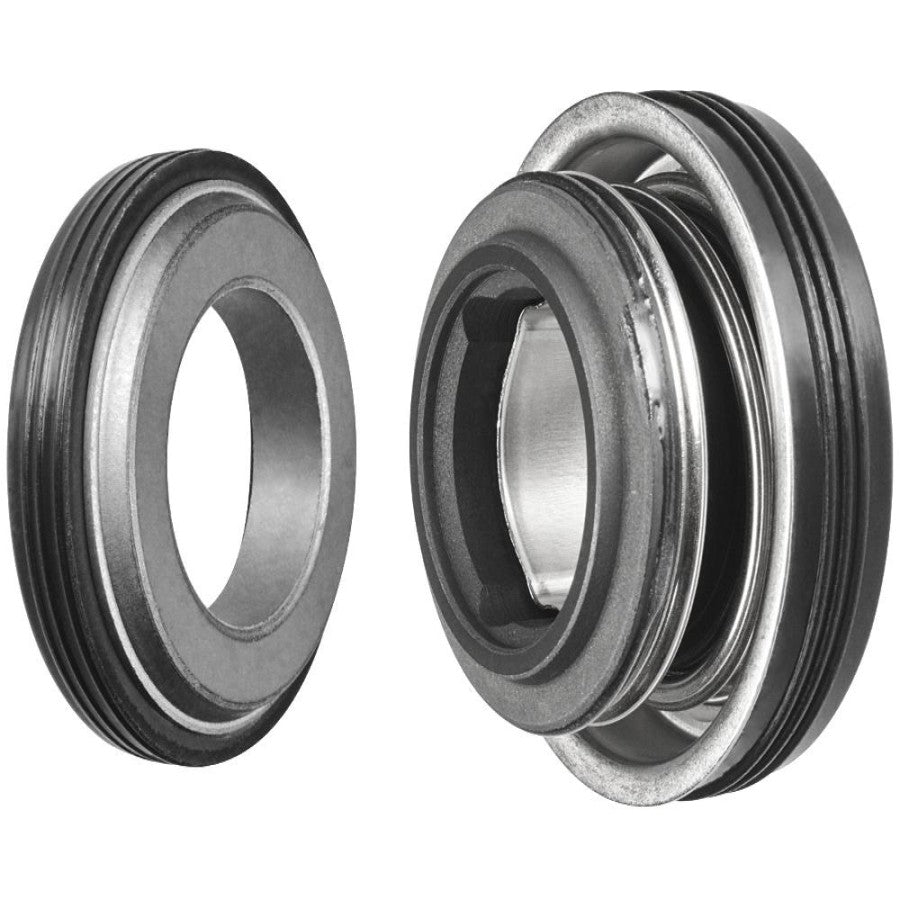

The mechanical seal is designed to provide a secure seal around the motor shaft outlet of the pump body.

It consists of two main components: one part, typically fitted with a spring, is mounted on the pump body, while the other part, made of carbon or ceramic, is threaded onto the turbine shaft. The carbon variant is particularly recommended for spas utilising saltwater electrolysis chlorination systems.

Dimensions (mm)

Component Exterior Diameter Interior Diameter Height
Carbon/Ceramic Part 35.4 18.8 9.1
Spring Part 41.5 17.8 20.3


Compatible LX Whirlpool Pumps

JA35, JA50, JA75, JA100, JA120, JA150, JA200
LP200, LP250, LP300
WP200-II, WP250-II, WP300-II
EA350, EA450
TDA35, TDA50, TDA75, TDA100, TDA200
DH1.0 (depending on the model; please verify the dimensions of the seal being replaced. If the measurements do not match, the entire pump body must be replaced.)
WTC50M

LX Whirlpool References: SEAL-56WUA, GM-210
